+16-
Sleeps 5
-
2 Slides
-
Bunk Over CabBath and a Half
-
38ft Long
-
City Shadow ll, Portico Linen, Sand Bar ll

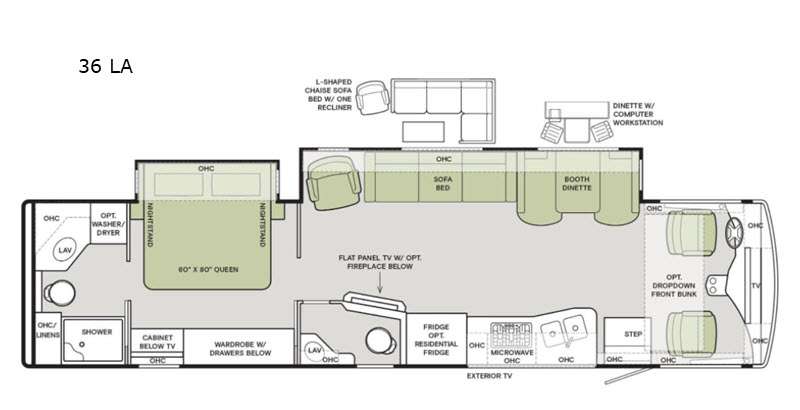

36 LA Floorplan
Specifications
| Sleeps | 5 | Slides | 2 |
| Length | 37 ft 6 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 10 in | Int Height | 7 ft |
| Interior Color | City Shadow ll, Portico Linen, Sand Bar ll | Exterior Color | Autumn, Barcelona, Nasa, Rocky Mountain Brown, Sunlit Sand, White Mahogany |
| Hitch Weight | 5000 lbs | GVWR | 24000 lbs |
| Fresh Water Capacity | 70 gals | Grey Water Capacity | 66 gals |
| Black Water Capacity | 50 gals | Tire Size | 255/80R22.5-GXRV |
| Generator | 7.0 kW Onan | Fuel Type | Gasoline |
| Miles | 17086 | Engine | 7.3L V8 |
| Chassis | Ford 24 K | Horsepower | 350 hp |
| Fuel Capacity | 80 gals | Wheelbase | 252 in |
| Available Beds | Queen | Torque | 468 ft-lb |
| Refrigerator Type | Two Door | Convection Cooking | Yes |
| Cooktop Burners | 3 | Number of Awnings | 1 |
| Axle Weight Front | 9000 lbs | Axle Weight Rear | 15500 lbs |
| LP Tank Capacity | 24 gals | Water Heater Capacity | 10 gal |
| Water Heater Type | DSI Gas/Electric | AC BTU | 27000 btu |
| Basement Storage | 203 cu. ft. | TV Info | Cab Flat Panel, LR Flat Panel, BR Flat Panel, Ext Flat Panel |
| Awning Info | Power with LED Lights | Washer/Dryer Available | Yes |
| Gross Combined Weight | 30000 lbs | Shower Type | Shower w/Seat |
| Electrical Service | 50 amp | VIN | A19633 |
Description
Tiffin Open Road Allegro Class A gas motorhome 36 LA highlights:
- Memory Foam Mattress
- Bath and a Half
- Recliner
- Booth Dinette
- Exterior Flat Panel TV
- Lighted Basement Storage
Start making a lifetime of memories in this bath and a half motorhome! The full rear bathroom has everything you will need to get squeaky clean each morning including an area prepped for the optional washer and dryer to be added so that you can extend your vacation even longer with clean clothes. The living/dining area is the perfect place for you to socialize with friends and family comfortably on either the recliner, the sofa bed which can be replaced with an optional L-shaped chaise sofa, and the booth dinette. If you need more sleeping spaces then you can easily choose to add the optional drop down bunk which is conveniently located above the Ultraleather power driver and passenger seats!
Each Open Road Allegro Class A gas coach by Tiffin Motorhomes offers a one-piece moisture resistant molded fiberglass roof cap providing insulation and strength, a durable and lightweight tubular aluminum wall skeleton, and fiberglass front and rear caps allowing you to enjoy your motorhome for many years to come. The multiplex Spyder Controls system allows you to monitor various tank levels and adjust electrical components of the coach from the comfort of one screen, and the hydraulic automatic leveling jacks make set up a breeze. The kitchen panoramic galley window offers you beautiful scenery, and the high gloss flat panel hardwood cabinet doors, solid wood cabinet fascias, and Ultraleather furniture gives you comfort and style. The midsection flat panel TV, the sound bar system with a subwoofer, and the Blu-Ray player are sure to keep you busy on those rainy days. Start making a lifetime of memories with your own Tiffin Motorhomes Open Road Allegro Class A gas motorhome!
Features
- Roof
- One-Piece, Moisture-Resistant Molded Fiberglass Roof Cap Provides Insulation and Strength and Prevents Water Intrusion
- 5 1/2" Formed Insulation
- Extraordinaire Cooling System Ducted Supply Air and Return Air
- Durable, Tubular Aluminum Roof Skeleton
- Sidewall
- Ge-Coat Fiberglass Outside Wall Panel
- High-Performance Thermal Insulation
- Durable, yet Lightweight, Tubular Aluminum Wall Skeleton
- Decorative Inside Wall Panel
- Floor
- Luxury Tile Floor (Excludes Slide Outs)
- Engineered Wood Sub-Flooring
- High-Performance Thermal Insulation
- Durable, Tubular Floor Skeleton
- Woven Moisture Barrier Material
Chassis
- Ford® Chassis
- V8 7.3L Engine
- Peak HP 350 @ 3,900 RPM
- Peak Torque (lb. - ft. Max Net) 468 @ 3,900 RPM
- TorqShift® 6-speed Automatic Overdrive with Tow/Haul Mode
- Fuel Tank (gallons) 80
- Alternator Amps 210
- Hitch Rating 5,000 lbs.
- Four Aluminum Wheels
- Cruise Control
- Emergency Start Switch
- Electronic Stability Control/Traction Control
- Hydraulic Automatic Leveling Jacks
Plumbing and Electrical
- 50 Amp Service
- Two Roof ACs – 13.5 K BTUs
- Two 6 V House Batteries
- Heated Water and Holding Tank Compartment
- Black Holding Tank Flush System
- Exterior Rinse Hose/Shower
- Water Filtration System
- Low-point Water Drain Lines
- Lighted Pluming Compartment
- Water Heater Bypass System
- 110 V Exterior Receptacle
- 110 V/12 V Converter (Integrated with Inverter)
- Inverter – Operates TVs, Surround Sound, and Optional Residential Refrigerator
- Inverter Remote Switch
- Cable TV Ready Hook-up
- Spyder Controls Multiplex System and Thermostats
- Gravity Water Fill
- Extraordinaire™ AC System
- External Tripod Satellite Hook-up
- 5.5 kw Onan® Generator (N/A 36 LA, 36 UA)
- 7.0 kw Onan® Generator (Std. 36 LA, 36 UA) (Optional 32 SA, 34 PA)
- In-motion Satellite Dish (Optional)
- Pre-wired for Winegard® TRAV'LER Satellite (Optional)
- One High-profile Roof AC with Heat Pump (15 K BTU) IPO Front 13.5 K BTU Heat Pump (Optional)
- Prep for Solar Panels (Optional)
- One Solar Panel (Optional)
- Two Solar Panels (Optional)
- CB Antenna (Optional)
- Wi-Fi Ranger (Optional)
- Truma Gas Continuous Water Heater (Optional)
- 6-gallon DSI Gas/Electric Water Heater (32 SA Only)
- 10-gallon DSI Gas/Electric Water Heater (N/A 32 SA)
- 2000 Watt Pure Sine Inverter with Automatic Gen Starter (Optional)
General Exterior
- Fiberglass Front and Rear Caps
- Front Cap Protective Film
- Form-Fitted Seamless Roof
- Tinted One-Piece Windshield
- Horizontal Mounted Wipers
- Chrome Mirror Heads with Integrated Turn Signal Cameras
- LED Patio and Door Light
- Lighted Basement Storage
- Power Patio Awning
- Patio Side Exterior TV
- Roof Mount Digital TV Antenna
- Slide-out Toppers
- Double Electric Step
- 1/4" Thick Single Pane Windows
- Color Back-up Monitor
- Full-body Paint
- Convenient Access Doors with Gas Shocks
- Convenient Compartment Doors with Gas Shocks
- Single Handle Lockable Storage Door Latches
- Exterior Flat Panel TV
- Roof Ladder
Interior
- High Gloss Raised Panel Hardwood Cabinet Doors
- Handcrafted Cabinet Fascias
- Soft Touch Vinyl Ceiling
- Treated Fabrics
- Ball Bearing Drawer Slides
- Solar Shades and Blackout Night Shades
- Roof Vent Fan
- Tank Level Monitor System
- Smoke Detector
- Carbon Monoxide Detector
- LPG Leak Detector
- Ducted Furnace System
- USB Ports
- Midsection Flat Panel TV
- Blu-ray Player
- Sound Bar System with Subwoofer
- Central Vacuum Cleaner (Optional)
- Prep for Combo Washer/Dryer (N/A 32SA, 34PA)
- Combo Washer/Dryer Under Counter in Back Bath (N/A 32 SA, 34 PA) (Optional 36 LA, 36 UA)
- Stacked Washer/Dryer (N/A 32 SA) (Optional 34 PA, 36 LA, 36 UA)
- Handcrafted Cabinetry Options
- Amber Glazed
- Mocha
- Natural Alder
- Fabric Suites Options
- City Shadow ll
- Portico Linen
- Sand Bar ll
- Floor Tile
- Sand Castle (Matte Finish) (Standard)
- Sea Oat (Matte Finish (Optional)
- Ultraleather Options
- Belgian
- Cocoon
- White Maple
Driver Compartment
- Tilt and Telescoping Steering Wheel
- CD Player and AM/FM Stereo
- 12 V Dash Receptacle
- Power Solar and Privacy Windshield Shades
- House Battery Disconnect Switch
- Fire Extinguisher
- Back-up Camera with Color Monitor
- Entry Step Well Light
- Ultraleather Power Driver and Passenger Seats
- Satellite Radio Prep (requires subscription)
- Front Overhead Flat Panel TV
- Two Cupholders
- Dual Dash Fans
- USB Dash Receptacle
- Driver Side Power Window (Optional)
- In-dash Navigation System (Optional)
- CB Antenna (Prep for CB Radio) (Optional)
- Ultraleather Power Passenger Seat with Footrest (Optional)
- Overhead Drop-down Bunk (Optional)
Living Area/Dinette
- Ultraleather Booth Dinette on Passenger Side (34 PA Only)
- Ultraleather Booth Dinette on Driver Side (N/A 34 PA)
- Dinette with Computer Workstation on Passenger Side (Optional on 34 PA Only)
- Dinette with Computer Workstation on Driver Side (Optional) (N/A 34 PA)
- Dinette Bar with Lift TV on Passenger Side (Optional on 34 PA Only)
- Ultraleather Flip and Fold Sofa on Driver Side (N/A 36 LA)
- Ultraleather Flip and Fold Sofa and One Recliner on Driver Side (36 LA Only)
- Ultraleather Sleeper Air Coil Sofa on Driver Side (Optional on 32 SA and 34 PA Only)
- Ultraleather Sleeper Air Coil Sofa and One Recliner on Driver Side (Optional on 36 LA Only)
- Ultraleather Air Coil Sofa Bed on Driver Side (Optional on 36 UA Only)
- Ultraleather L-shaped Sofa on Driver Side (Optional on 32 SA Only)
- Ultraleather L-shaped Sofa and One Recliner on Driver Side (Optional on 36 LA Only)
- Ultraleather Super Sofa on Driver Side (Optional on 34 PA Only)
- Fireplace below Midsection Flat Panel TV (Optional)
- Additional Solid Surface Upgrades (Dinette and Mantle) (Optional)
- Bunk Beds ( 36 UA Only)
Kitchen
- Spray Rinser at Sink Faucet
- Solid Surface Galley Countertop
- Solid Surface Cooktop Covers
- Convection Microwave with Exterior Venting
- 3-burner Cooktop
- Double Bowl Stainless Steel Sink
- Panoramic Galley Window
- 2-door Gas/Electric Refrigerator with Pantry (N/A 34 PA)
- Residential Refrigerator with Icemaker (34 PA Only) (Optional on 32 SA, 36 LA, 36 UA)
- Oven with Cooktop/Convection Microwave (Optional)
Bedroom
- Wardrobe with Automatic Light
- Flat Panel TV
- Solar/Privacy Shades
- Bed Comforter with Throw Pillows
- Wall-to-wall Luxury Vinyl Tile Flooring (Excludes Slide-outs)
- Ceiling Fan (Optional)
- Memory Foam Queen Mattress (60" x 80") (34 PA, 36 LA Only) (Optional on 32 SA, 36 UA)
- Memory Foam King Mattress (72" x 80") (32 SA, 36 UA only) (Optional on 34 PA) (N/A 36 LA)
Bath
- Medicine Cabinet
- Molded One-Piece Fiberglass Shower
- Roof Vent Fan
- Skylight and LED Light in Shower
- Water Pump Switch
