Used 2022 Jayco Melbourne Prestige 24RP

Motor Home Class C - Diesel

Stock #XJ5445

Pensacola, FL

1 of 7

Specifications

Sleeps	5	Slides	1
Length	25 ft 2 in	Ext Width	8 ft
Ext Height	10 ft 11 in	Int Height	6 ft 8 in
Interior Color	Denmark	Exterior Color	Full-Body: Oceanview, Oxford, Sienna, Sycamore
Hitch Weight	5000 lbs	GVWR	11030 lbs
Fresh Water Capacity	35 gals	Grey Water Capacity	31 gals
Black Water Capacity	31 gals	Tire Size	LT215/85R16
Furnace BTU	20000 btu	Generator	Onan 3,600-watt LP
Fuel Type	Diesel	Miles	10550
Engine	3.0L V6 BluTec	Chassis	Mercedes-Benz 3500
Horsepower	188 hp	Fuel Capacity	26 gals
Wheelbase	170 in	Number Of Bunks	1
Available Beds	Queen Murphy	Torque	325 ft-lb
Refrigerator Size	6 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Shower Size	24" x 32"
Number of Awnings	1	LP Tank Capacity	41 lbs
Water Heater Capacity	6 gal	Water Heater Type	Truma AquaGo Comfort Plus Tankless
AC BTU	15000 btu	Basement Storage	17 cu. ft.
TV Info	LR LED	Awning Info	14' Girard Armless w/LED Light Strip
Gross Combined Weight	15250 lbs	Shower Type	Standard
Electrical Service	30 amp	VIN	155445

Description

Jayco Melbourne Prestige Class C diesel motorhome 24RP highlights:

Rear Full Bath
Queen Murphy Bed
Cab-Over Bunk
Large Kitchen Pantry
190W Solar Panel

Travel the countryside for new scenery, adventures and memories in this motorhome that offers a versatile living and sleeping area, a booth dinette for dining and relaxing, plus a cab-over bunk for overnight guests. The queen Murphy bed offers a comfortable place to sleep after you have enjoyed the sofa during the daytime. The slide out gives you more floor space to move from the front swivel driver and passenger seats to the rear full bathroom with a shower and a wardrobe, plus a window for some natural lighting. The galley kitchen comes complete with a convection microwave and two-burner cooktop, plus a large pantry for dry goods and a 6 cu. ft. refrigerator. And there are options to choose from to enhance this already luxurious and fully-featured coach such as theater seating in place of the dinette and/or a B-Plus front cap with overhead storage instead of the cab-over bunk.

With any Melbourne Prestige Class C diesel motorhome by Jayco, every sidewall, rear wall and slide room wall is bonded together with Stronghold VBL lamination to create the lightest, yet strongest, construction available in the RV industry, plus there is a one-piece, seamless front cap that resists wear and tear from years on the road. The interior offers an overhead bunk with 750 lbs. capacity which is way over the industry standard and allows for more overnight guests. And you will find seatbelts installed in every designed seating location to keep your favorite people safe. Other standout features include the JAYCOMMAND powered by Fireplay giving you full control of key operations from your phone or tablet, a Truma AquaGo Comfort Plus tankless water heater, a water filtration system, ball-bearing drawer guides, and an 80-inch interior ceiling height with padded vinyl ceiling giving you more space to enjoy.

Features

Standard Features (2022)

Driving Equipment

Premium Mercedes-Benz® 3500 chassis with 170 in. wheelbase
Upgraded premium chassis features include:
Active brake assist
Chrome grill package
Adaptive cruise control
Heated captain's seats
Smartphone tray with wireless charging
Upgraded lighting package
Rain-sensing wiper system
Leather steering wheel
Lane-keeping assist
Traffic sign assist
GVWR- 11,030 lb.
GCWR- 15,250 lb.
V-6 Turbo 188 HP diesel engine with electronic fuel injection and 325 ft.-lb. torque
7-speed automatic transmission
220-amp alternator
E-rated highway tires- 215/85R16
Aluminum rims
Front and rear disc, 4-wheel anti-lock brakes
5,000 lb. rear hitch receiver with dual connector 7-pin plug
12V chassis battery
24.5 gal. fuel tank
5.8 gal. DEF tank
Heated, remote-controlled, side-view mirrors
10.25 in. integrated Mercedes-Benz® infotainment center with GPS
Driver and passenger airbags
Power windows and door locks
Tilt steering wheel
A/C and cruise control
Auxiliary start switch
Cab area privacy curtain

Exterior Equipment

StrongholdVBL™ roof, floor and sidewalls
Bead-foam insulation (R-24 max roof, R-9 max floor, R-5 max walls)
One-piece fiberglass roof
Partial fiberglass rear cap
Premium Sikkens full-body paint
Electric stabilizer jacks
Slideout cover awnings
Entrance door with industry’s largest travel-view window
Electric-powered entrance step with integrated house battery compartment
(2) 12V house batteries
190W solar panel with dual controller
Aluminum skirt-hung baggage doors
12.2 gal. propane tank (41 lb.)
LP quick-connect hookup
Exterior utility center
Winterization drain system
Black tank flush
Outside shower
12V demand water pump
Onan® 3,600-watt LP generator
Transfer switch with reverse polarity protection
30-amp electrical service
Flush-mount LED marker lights
Third brake light

Interior Equipment

Custom-molded ABS surround in cab-over area
Overhead bunk with 750 lb. capacity
JAYCOMMAND™ powered by Firefly
80 in. interior ceiling height with padded vinyl ceiling
High-intensity, LED ceiling lights
High-gloss hardwood fascia
Tecnoform® high-gloss cabinetry
Ball-bearing drawer guides
Jayco-exclusive, easy-operation legless dinette table (24RP)
U-shaped dinette with stow away pedestal legs (24LP)
12V USB charging station in dinette area
2-point lap safety belts in all designated seating locations
Day/night roller shades
15,000 BTU low-profile A/C
20,000 BTU auto-ignition ducted furnace
Powered roof vent in living area with wall switch
LED living room TV
Blu-Ray™ player in living area
Prep for satellite dish
Cable TV hookup with RG-6 coax
Winegard 2.0 Wifi/4G antenna
6 cu. ft. gas/electric/12V refrigerator
Suburban 2-burner, drop-in cooktop with flush cover
Under-mounted convection microwave
Tecnoform® high-gloss countertops
Stainless steel sink with wooden cover/cutting board
Decorative kitchen backsplash
Water filtration system
Shower with decorative surround and skylight
Stainless steel bathroom sink
Porcelain toilet with foot flush
Powered roof vent in bathroom with wall switch
Queen-size bed with bedspread (24LP)
Queen-size power Murphy bed (24RP)
(2) Twin-size beds (24TP)
Under-bed storage (select models)
Bedroom TV prep
Large wardrobes
Smoke alarm
Carbon monoxide detector

Customer Value Package (Mandatory)

One-piece, seamless, fiberglass front cap
Automotive-bonded, panoramic window in front cap with power shade
Frameless windows
Backup camera
Girard® armless patio awning with LED light strip
1,000-watt inverter
Heated holding tanks (12V pads)
Truma AquaGo Comfort Plus tankless water heater
Keyless cab entry
Ultraleather® swivel driver and passenger seats with boosters

Options

Hydraulic leveling jacks
3,200-watt diesel generator
B-Plus front cap
Theater seating ILO dinette (24LP, 24RP)
Folding windshield sun shade

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

We are here to help, call us at
850-388-6745 or Contact Us

We are here to help!

850-388-6745
Contact Us
Contact Sales

Carpenter's Campers is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @850-388-6745 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Payments, rates, and amount financed are determined by credit history. Your actual payments may vary. Plus tax, title and license. See dealer for details.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2022 Jayco Melbourne Prestige 24RP

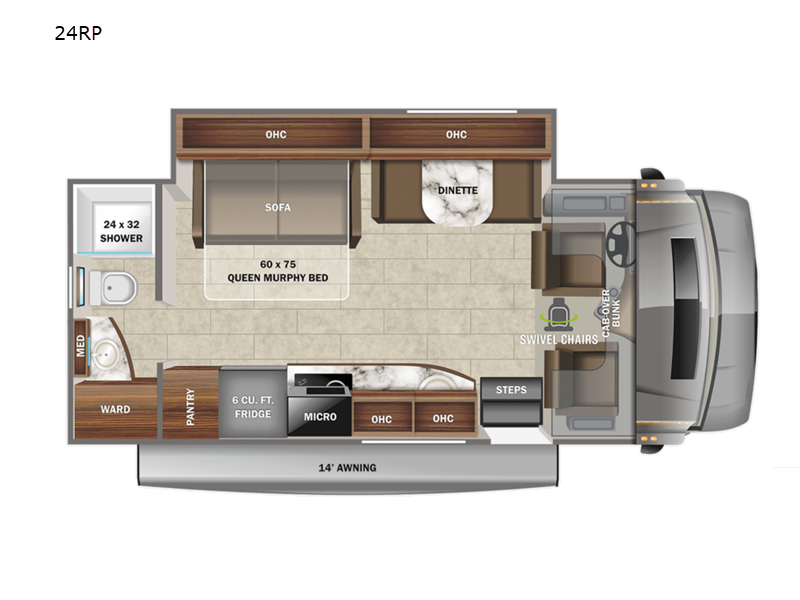

24RP Floorplan
