+15- Sale Price: $299,977
- List Price: $357,655
- Discount: $57,678
-
Sleeps 5
-
4 Slides
-
Bunk Over CabOutdoor Entertainment
-
41ft Long
-
Artist Taupe III, Coastal Sand III, Trend Beige III

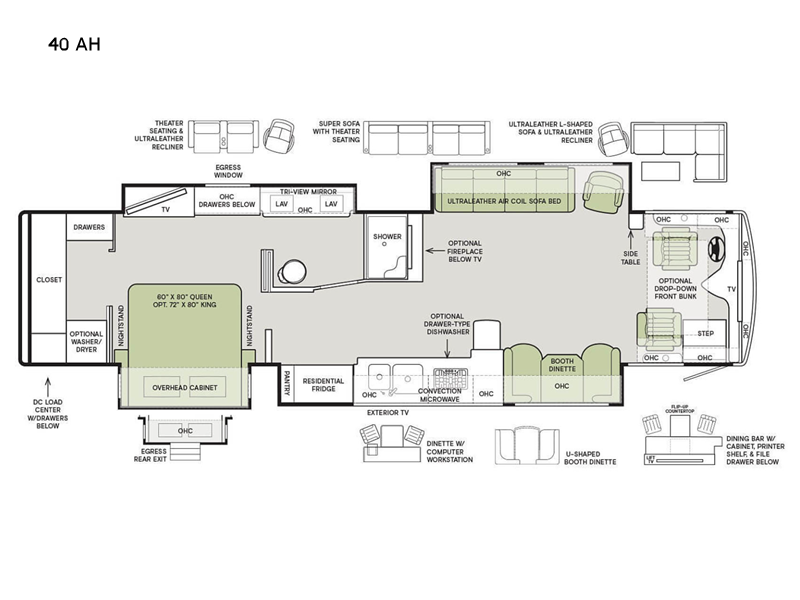

40 AH Floorplan
Specifications
| Sleeps | 5 | Slides | 4 |
| Length | 41 ft 4 in | Ext Width | 8 ft 5 in |
| Ext Height | 12 ft 7 in | Int Height | 6 ft 11 in |
| Interior Color | Artist Taupe III, Coastal Sand III, Trend Beige III | Exterior Color | Gen 9, Gen 10; Euro Blue, Frosted Granite, Maroon Coral, Fire Opal, White Mahogany, Nasa |
| Hitch Weight | 10000 lbs | GVWR | 38320 lbs |
| Fresh Water Capacity | 90 gals | Grey Water Capacity | 66 gals |
| Black Water Capacity | 50 gals | Tire Size | 275/80R22.5 |
| Generator | 10.0kW Onan Manual Slide Out | Fuel Type | Diesel |
| Miles | 5120 | Engine | Cummins L9 |
| Chassis | Freightliner XCM | Horsepower | 380 hp |
| Fuel Capacity | 100 gals | Wheelbase | 266 in |
| Available Beds | Queen | Torque | 1150 ft-lb |
| Refrigerator Type | Stainless Steel Residential | Convection Cooking | Yes |
| Number of Awnings | 2 | Axle Weight Front | 14320 lbs |
| Axle Weight Rear | 24000 lbs | LP Tank Capacity | 35.7 gals |
| Water Heater Type | Truma Gas Continuous | Basement Storage | 157 cu. ft. |
| TV Info | Front Overhead TV, LR TV, BR Flat Panel TV, Ext. Flat Panel TV | Awning Info | Girard Power Patio and Door |
| Washer/Dryer Available | Yes | Gross Combined Weight | 48320 lbs |
| Shower Type | Shower w/Seat | VIN | 1707 |
Description
Tiffin Motorhomes Phaeton Class A diesel motorhome 40 AH highlights:
- Rear Private Bedroom
- Sofa Bed
- Convection Microwave
- Dual Entry Bathroom
- Exterior TV
Experience a comfortable road trip with this Phaeton motorhome! It features a rear private bedroom with a queen bed slide to lay your head on at night across from a flat panel TV and overhead cabinets with drawers below, and a large rear closet that has drawers and an area prepped to add an optional washer and dryer. The bedroom even has an entrance into the dual entry bathroom which has a shower with a seat and a dual sink vanity with a tri-view mirror for two to get ready at once in the mornings. When you don't feel like preparing a meal, grab some leftovers from the stainless steel refrigerator, heat it up in the convection microwave, and enjoy it at the booth dinette. If you need to get some work done while you are away then choose to add the optional dinette with computer work station, and if you want more sleeping spaces then add the optional drop-down front bunk. There are many more options you can add to make this unit exactly how you want it!
Each one of these Tiffin Motorhomes Phaeton Class A diesel motorhomes offer high-end elegance and comfort while still well within reach! A PowerGlide chassis or Freightliner chassis, depending on which model you choose, will give you a smooth ride for every mile. A slide out 10.0 kW Onan manual generator powers these units and a Spyder multiplex system with app compatibility controls them. Their stunning interiors are designed with porcelain tile floor, ultraleather furniture, and handcrafted cabinet fascias and doors. Adaptive cruise control, collision mitigation, and a tire pressure monitoring system all ensure you will safely arrive at each destination. The exterior flat-panel TV with sound bar is protected by a Girard power patio awning, plus there is a door awning to protect you from the rain. Come find your favorite model today!
Features
Standard Features (2022)
Roof
- One-piece, moisture resistant molded fiberglass roof cap provides insulation and strength and prevents water intrusion
- 5½" formed insulation
- Extraordinaire™ Cooling System ducted supply air and return air
- Durable, tubular aluminum roof skeleton
Sidewall
- Gel-coat fiberglass outside wall panel
- High-performance thermal insulation
- Durable, yet lightweight, tubular aluminum wall skeleton
- Decorative inside wall panel
Floor
- Luxurious Tile Floor
- Laminated Elevated Sub-Flooring
- High-performance thermal insulation
Chassis Features
- Aluminum Wheels (4); (6) on 44OH
- Air Bags (4); (6) on 44OH
- Exhaust Brake (N/A 40 IH, 44OH)
- 3- Stage Compression Brake on all Freightliner Chassis
- 2-stage Compression Brake on all PowerGlide Chassis (Optional 40 IH and 44 OH; N/A all other Models)
- Adjustable Accelerator and Brake Pedals
- Allison 3000 MH 6-speed Automatic Transmission
- Air Brakes with Automatic Slack Adjusters and ABS
- 18" Smart Wheel Steering Wheel
- Adaptive Cruise Control
- Collision Mitigation with Forward Warning and Active Braking
- Emergency Start Switch
- Hydraulic Automatic Leveling Jacks
- Tire Pressure Monitoring
- Electronic Stability Control
- Automatic Traction Control
Plumbing and Electrical
- 10.0 kw Onan® Manual Slide-out Generator
- Spyder Multiplex Controls with App Compatibility
- Auto Generator Start
- Electric Hose Reel
- Electric Power Cord Reel
- Six 6 V House Batteries
- Black Tank Flush System
- Three Roof ACs with Heat Pumps
- Tank Level Monitor System
- Heated Water and Holding Tank Compartments
- 110 V Exterior Receptacle
- Truma Gas Continuous Water Heater
- 2000 Watt Inverter with 100 Amp Converter and Transfer Switching (Select Models)
- Complete Cable Wiring (Interfacing with Sound Bar and Satellite System) (Only 40 AH)
- DISH Network Receiver (requires subscription)
- Water Filter
- Gravity Water Fill
- Extraordinaire™ AC System
- TRC Hi/Lo Voltage Protection
- AquaView ShowerMiser
- House Battery Disconnect Switch
- Two Ducted Furnaces
- In-motion Satellite Dish 3 (Optional)
- Pre-wired for Winegard® TRAV'LER (Optional)
- Wi-Fi Ranger (Optional)
- Aqua-Hot™ and All-electric Unit (Optional; Standard on 44OH)
- Prep for Solar Panels (Optional)
- Three Solar Panels (Optional)
- Extended Cycle Batteries (Optional)
- Waste Elimination System Macerator Pump (Optional)
- All-electric Coach: Includes Aqua-Hot Hydronic Heating System with Continuous Hot Water and Induction Cooktop (Optional)
Exterior
- Fog Lights
- Daytime Running Lights
- Large Tinted One-piece Windshield
- Heated Power Mirrors with Integrated Cameras
- Single-motor Intermittent Wipers
- Fiberglass Front and Rear Caps
- Back-up Camera
- Automatic Headlights
- Undercoating
- Deadbolt Front Entrance Door
- Lockable Swing-out Exterior Storage Doors with Gas Shocks
- Window Awning Package (2 Windows)
- Full-body Paint with Protective Film on Select Locations
- Remote Locking System for Entry Door
- Chrome Handles on Compartment Doors
- Chrome Double Electric Step
- Flush Mounted and Painted-frame Dual Pane Windows
- Exterior Patio LED Light
- Girard Power Patio and Door Awnings
- Motion Sensor Lighting for Exterior Storage
- Cable-ready TV Hook-up
- Exterior Flat Panel TV (includes Sound Bar)
- Custom Mud Flap
- Docking Lights
- Air Horns
- Digital TV Antenna
- Roof Ladder
- One Storage Compartment Slide-out Tray (Optional)
- Two Storage Compartment Slide-out Trays (Optional; N/A 37 BH)
- Two Roof-mounted Patio Awnings (Optional)
Interior
- Soft Touch Vinyl Ceiling
- Treated Carpet in Slide-outs
- Handcrafted Cabinet Fascias and Doors with Concealed Hinges
- Solar and Privacy Shades
- Power Roof Vents
- Smoke Detector
- LED Lighting
- Central Vacuum Cleaner with VacPan
- Soft Close Drawers
- Sound Bar with Subwoofer
- BluRay Player in Bedroom Connected with Sound Bar
- Stacked Washer/Dryer (Optional)
Handcrafted Cabinetry
- Amber Glazed (Optional)
- Pure Linen (Optional)
- Shadow (Optional)
Fabric Suites
- Artist Taupe III (Optional)
- Coastal Sand III (Optional)
- Trend Beige III (Optional)
Floor Tile
- Vicinity (Matte Finish)
- Bianco Navaro (Glossy Finish) (Optional)
- Gold Heat Heated Tile Floor (Optional)
Ultraleather
- Belgian (Optional)
- Cocoon (Optional)
Driver's Compartment
- 18" Smart Wheel Steering Wheel
- Color Rear Vision Monitor System with Side-view Cameras Activated by Turn Signals
- Digital Dash Cluster
- Adjustable Accelerator and Brake Pedals
- One Drawer in Dash
- Fire Extinguisher
- Front Overhead Flat Panel TV
- Ultraleather Power Driver and Passenger Seats with Integrated Seatbelt Brackets
- Ultraleather Power Passenger Seat with Footrest
- Contemporary Wraparound Dash
- Courtesy Drawer in Step Well
- Courtesy Light in Step Well
- Dual 12 V Dash Receptacle
- Power Solar and Privacy Windshield Shade
- Driver/Passenger Side Window Solar and Privacy Shades
- Satellite-ready Radio Includes Receiver and Antenna (requires subscription)
- Single CD Player and AM/FM Stereo
- Dual Dash Fans
- USB Dash Receptacle
- Power Step Well Cover
- Solid Non-opening Window on Passenger Side
- In-dash Navigation System (Optional)
- Mobileye® Collision Avoidance System (Optional)
- Blind Spot Monitoring System (Optional)
- Front Overhead Bunk (Optional)
Living Area/Dinette
- Ultraleather Booth Dinette/Sleeper on Passenger Side (40 AH, 40 IH, 44 OH)
- Ultraleather Booth Dinette/Sleeper on Driver Side (37 BH, 40 QBH, 40 QKH)
- Ultraleather U-shaped Dinette (Non-sleeper) on Passenger Side (Optional; N/A 37 BH, 40 AH, 40 QBH, 40 QKH)
- Ultraleather U-shaped Dinette (Non-sleeper) on Driver Side (Optional; N/A 40 AH, 40 IH, 44OH)
- Dinette with Computer Workstation on Passenger Side (Optional; N/A 37 BH, 40 QBH, 40 QKH)
- Dinette with Computer Workstation on Driver Side (Optional; N/A 40 AH, 40 IH, 44 OH)
- Dinette Bar with Lift TV (Optional on 40 AH Only)
- Ultraleather DE Sofa/Bed on Passenger Side (40 QBH, 40 QKH)
- Ultraleather DE Sofa/Bed and Lift TV on Passenger Side (37 BH, 40 IH, 44 OH)
- Ultraleather Recliner and Lift TV on Passenger Side (Optional; N/A 40 AH, 40 QBH, 40 QKH, 44 OH)
- Ultraleather Air Coil Sofa on Passenger Side (Optional; N/A 37 BH, 40 AH, 40 IH, 44 OH)
- Ultraleather Air Coil Sofa on Driver Side (N/A 40 AH)
- Ultraleather Recliner with Angled TV Cabinet on Driver Side (Optional; N/A 37 BH, 40 AH, 40 IH, 44 OH)
- Ultraleather Air Coil Sofa and Lift TV on Passenger Side (Optional; N/A 37 BH, 40 AH, 40 QBH, 40 QKH)
- Ultraleather Air Coil Sofa/Bed and Lift TV on Driver Side (Optional; N/A 37 BH, 40 AH, 40 IH, 44 OH)
- Ultraleather Air Coil Sofa and Ultraleather Recliner on Driver Side (40 AH)
- Ultraleather L-shaped Sofa on Driver Side (Optional on 44 OH Only)
- Ultraleather L-shaped Sofa and Ultraleather Recliner on Driver Side (Optional on 40 AH Only)
- Theatre Seating on Driver Side (Optional; N/A 40 AH, 40 QBH, 40 QKH)
- Theatre Seating on Passenger Side (Optional; N/A 37 BH, 40 AH, 40 IH, 44 OH)
- Two Ultraleather Recliners with Center Cabinet on Driver Side (Optional on 44 OH; N/A All Other Models)
- Two Ultraleather Recliners on Driver Side (Optional on 40 QKH; N/A All Other Models)
- Fireplace with Two Ultraleather Recliners on Driver Side (Optional on 44 OH; N/A All Other Models)
- Fireplace with Ultraleather Recliner with Angled TV Cabinet on Driver Side (Optional; N/A 37 BH, 40 AH, 40 IH, 44 OH)
- Fireplace with Ultraleather Recliner with Lift TV on Passenger Side (Optional; N/A 40 AH, 40 QBH, 40 QKH, 44 OH)
- Fireplace Below TV (Optional on 40 AH Only)
Kitchen
- Solid Surface Countertop with Stainless Steel Sink
- Solid Surface Sink Covers
- Expand-an-island
- Single Lever Sink Faucet with Sprayer
- Cooktop with Convection Microwave
- Stainless Steel Microwave/Convection Oven
- Tile Galley Backsplash
- Panoramic Galley Window
- Stainless Steel Residential Refrigerator
- Dishwasher (Optional)
Bedroom
- Wardrobe with Automatic Light
- Flat Panel TV
- Bed Comforter with Throw Pillows
- Under Bed Storage
- Carbon Monoxide Detector
- LPG Leak Detector
- Chest of Drawers with Laundry Hamper
- Ceiling Fan
- Memory Foam Queen Mattress
- Bunk Beds with Convertible Wardrobe (40 QKH)
- Sleep Number Mattress–Queen (60" x 80") (Optional)
- Sleep Number Mattress–King (72" x 80") (Optional)
- Memory Foam King Mattress (72" x 80") (Optional)
- Safe (Optional)
- Egress Rear Exit (Optional)
Bathroom
- Medicine Cabinet with Tri-View Vanity Mirror
- Skylight and LED Light in Shower
- Handcrafted Custom Privacy Door
- Solid Surface Vanity Top and Porcelain Bowl
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
